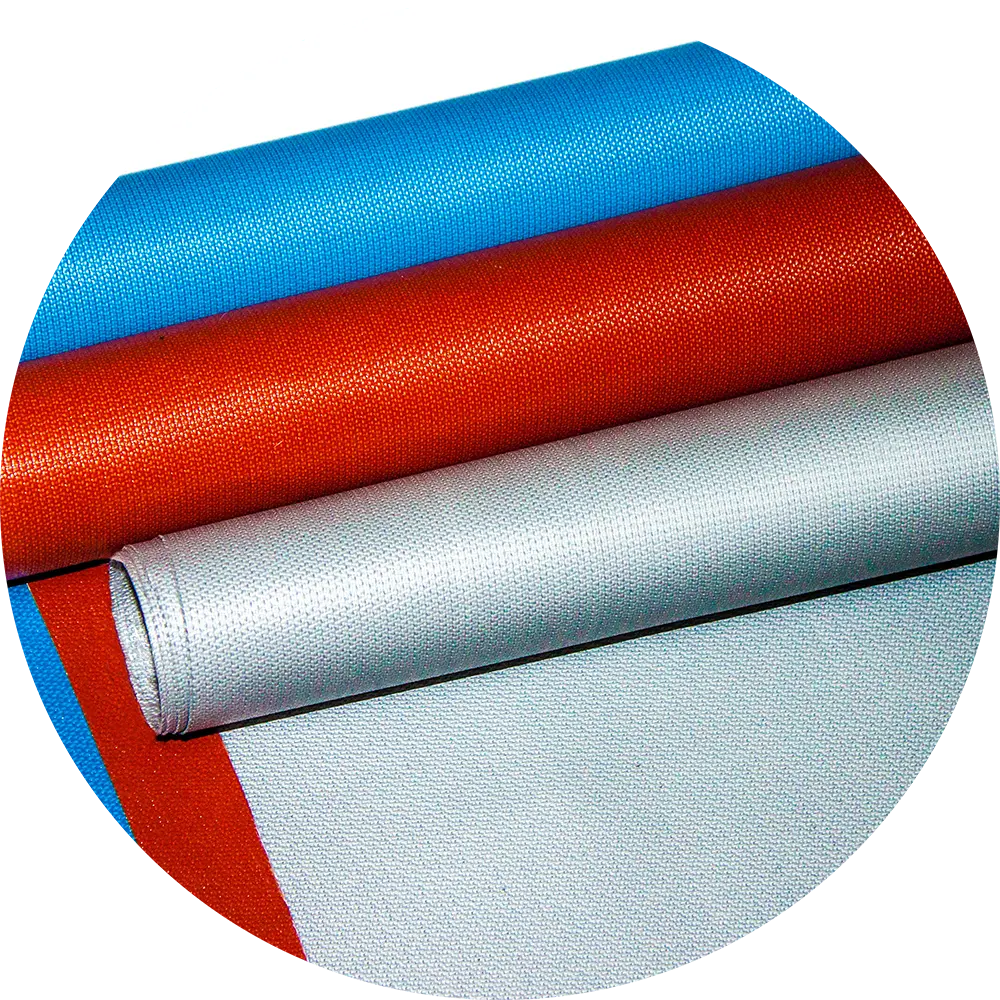

Silicone Coated Cloth
Silicone coated fiberglass fabric is comprised of varying high-temperature resistant fiberglass textile coated with flame retardant silicone rubber coating on 1-side or 2- side. The fabric is superior for various applications that require high strength, corrosion and chemical resistance, waterproof, fireproof and thermal insulation properties.
Silicone coated fiberglass fabric is widely used for removable insulation covers, fire blankets, welding curtains, fabric expansion joints, air ducts, etc.
Silicone Coated Cloth
Silicone coated fiberglass fabric is comprised of varying high-temperature resistant fiberglass textile coated with flame retardant silicone rubber coating on 1-side or 2- side. The fabric is superior for various applications that require high strength, corrosion and chemical resistance, waterproof, fireproof and thermal insulation properties.
Specification | Weight (g/m2) | Thickness (mm) | Coating | Color | Nominal Width (mm) |
CT-100-250D | 240 | 0.15 | Double sides | White | 1000-1270 |
CT-200-280D | 280 | 0.2 | Double sides | Grey/White | 1000-1270 |
CT-200-340D | 340 | 0.25 | Double sides | Grey/White | 1000-1270 |
CT-430-510S | 510 | 0.4 | Single side | Grey | 1000-1550 |
CT-430-510D | 510 | 0.4 | Double sides | Grey | 1000-1550 |
CT-430-560D | 560 | 0.43 | Double sides | Grey/Red | 1000-1550 |
CT-660-960D | 960 | 0.7 | Double sides | Grey | 1000-1550 |
CT-880-1080D | 1080 | 0.85 | Double sides | Grey/Red | 1000-1550 |
CT-880-1140D | 1140 | 0.9 | Double sides | Grey | 1000-1550 |
CT-1050-1350D | 1350 | 1.1 | Double sides | Grey | 1000-1550 |
CT-Y-1100S | 1100 | 0.58 | Single side | Red | 500-1200 |
CT-Y-1600S | 1600 | 1.0 | Single side | Red | 500-1200 |
CT-Y-1800D | 1800 | 1.2 | Double sides | Red | 500-1200 |
CT-YS-2300D | 2300 | 1.3 | Double sides | Red | 500-1200 |
Main Properties
* High temperature resistance of continuous working up to 230°C (446°F), short period working up to 260°C (500°F).
* Good performance of chemical, corrosion, anti-aging, weathering resistance.
* Fireproof, oilproof, water repellent.
* High strength, flexible, durable, and wear resistant.
* Excellent property of heat insulation, welding protection.
Capacity and Options
* Normal thickness: 0.15mm, 0.25mm, 0.40mm, 0.43mm, 0.9mm, 1.0mm, 2mm,etc.
* Normal weight: 510 g/m2 (15 oz/yd2), 560 g/m2 (16.5 oz/yd2), 1080 g/m2 (32 oz /yd2), etc.
* Normal color: White, Grey, Silver Grey, Red, Black, etc.
* Coating: One-side, Double-side.
Silicone coated fiberglass fabric is available in varieties of weight, coating, color, thickness to meet customers’ applications.
Main Applications
* Removable insulation covers

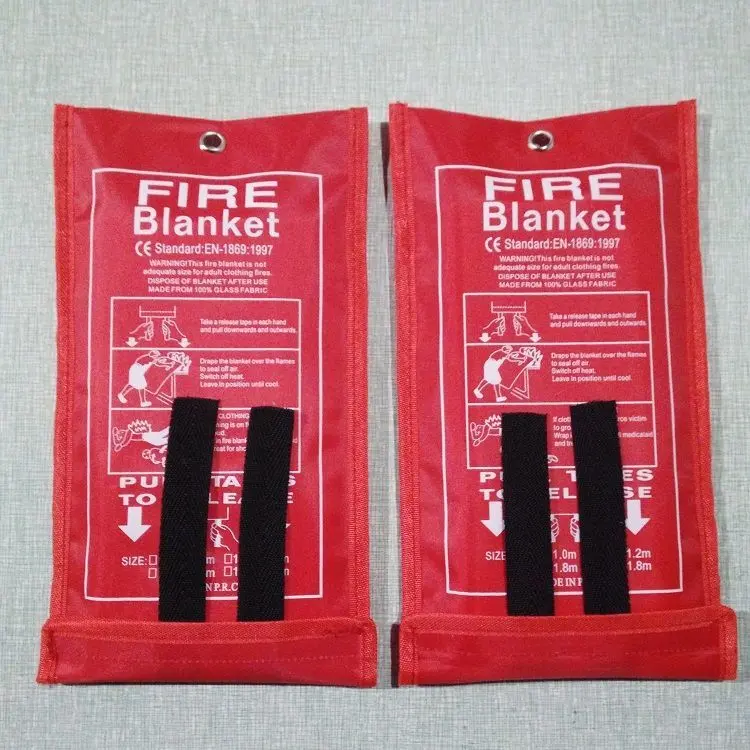

* Fire blankets
* Welding curtains
* Fabric expansion joints
* Air ducts
Packaging
- Normal packaging: PP film + carton + pallet.
- Packaging can be customized as request.
