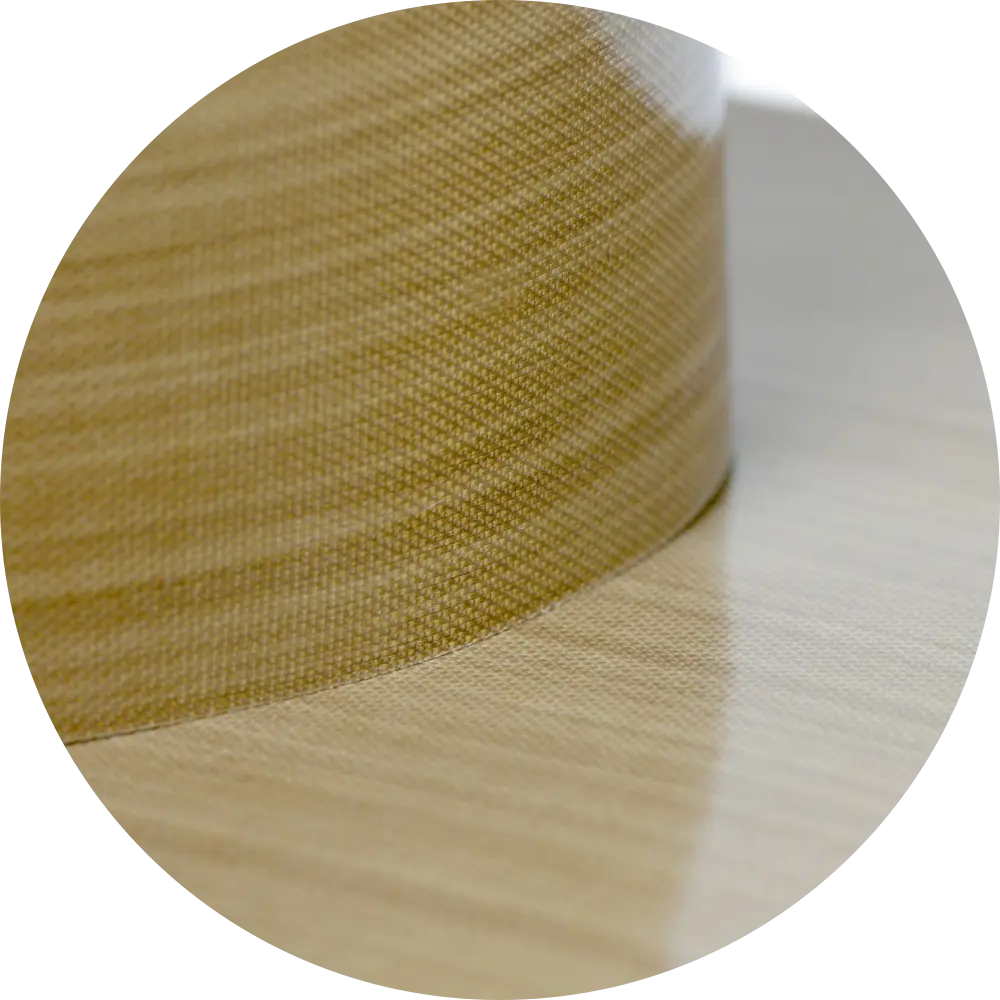

PTFE coated glass fiber fabric

PTFE coated glass fiber fabric is made of high performance glass fiber fabric impregnated with PTFE emulsion. It’s designed for varieties of applications in diverse industries where high temperature, non-stick, chemical resistance and dimensional stability characteristics.

We manufacture many styles of PTFE coated glass fiber fabrics from 0.08mm to 1mm thick. Our PTFE coating percentages range from 15% to over 60% by weight.

We offer PTFE coated woven fiber glass fabric and PTFE coated glass fiber open mesh fabric.

* PTFE coated woven fiber glass fabric: tightly knit glass fiber yarns weaved fabric as substrate material, which is coated with PTFE (Teflon) emulsion.

* PTFE coated glass fiber open mesh fabric: glass fiber open mesh fabric as substrate material, and it is coated with PTFE (Teflon) emulsion.

Main properties:

* High-temperature resistance(-100℉ to +550℉).

* Non-sticky and easy to clean.

* Food grade and nontoxic.

* Heat resistance and fireproof.

* Resistant to chemical corrosion, strong acid and alkali.

* Good dimensional stability, high strength, and has good mechanical properties.

* Low friction coefficient (0.05-0.1), the best choice for oil-free self-lubrication.

* Light transmittance up to 6%~13 %.

* High insulation property (the value of dielectric constant is only 2.6, and the value of tangent is less than 0.0025).

* Anti-static and Ultraviolet-proof.

Capacity and Options:

* Normal color: Brown, black or white.

* Normal Thickness: from 0.08 mm to 1 mm

* Widths: from 9mm to 4000 mm. Please see the maximum width of each style in our technical specifications.

* Roll length for roll goods: standard roll length from 10m~100m, but the roll length can be customized.

* Size of piece goods: Cut pieces according to your request.

* Anti-static or none anti-static

* Closed fabric or mesh fabric.

* With adhesive or without adhesive

* Single color or double colors of two sides.

* As an assembled transport belt, endless woven also available

Classification:

Depending on application requirements, PTFE coated glass fiber fabric can be produced different grades.

* Common industrial grade

PTFE coated glass fiber fabric has good heat resistance, corrosion, non-stick properties, mainly used in various industrial fields.

* Standard grade

Using imported materials production, in addition to good corrosion resistant properties, the surface is more smooth, flat, non-stick performance is good, both can be applied to general industrial applications, more advantages in some products used plastic stripping or separation sheets, gaskets, off mold surface.

* Food grade

Smooth surface, good release properties, heat resistance and easy to clean, use more secure in the food industry.

* Anti-static grade (anti-static cloth)

In addition to traditional performance of PTFE coated glass fiber fabric, adding anti static agent when producing PTFE coated glass fiber fabric, so that it has anti-static properties to meet specific customer’s requirements.

Main applications:

 * Heat sealing plastic film

* Gaskets & diaphragms

* Plastic bag manufacturing

* Conveyor belt

* Food drying mats and belts

* Reusable cooking tray liners

* Adhesive tape

* Welding cloth for welding and sealing; plastic film, heat sealing liner..

* Flexible compensator, friction material, wheel slice

* Anti-static cloth

Main Technical specifications:

Remark: Size can be customized.

Packaging:

*For roll goods

1. Normal packaging: PP film + carton + Pallet.
2. Packaging can be customized as request.

* For piece goods

1. Normal packaging: Carton or Carton + Pallet.
2. Packaging can be customized as request.

FAQ:

Who is Core-Tex?
Shenzhen Core-Tex Composite Materials Co.,Ltd. is an emerging enterprise devoted to PTFE coated glass fabric, Adhesive PTFE coated glass fabric, PTFE mesh conveyor belt, PTFE grill mat and other PTFE coated glass products.

Can you provide free samples?
We can provide A4 format size samples for free.

Who pay the courier fee?
Customers need to pay the courier fee.

Shall customer customize the package?
Our normal package is good for long distance shipping, however, customer’s special request of the package should be customized.

What’s your delivery time?
Within 5000 square meters: 7~15 days after deposit received.
5000~10,000 square meters: 15~25 days after deposit received.
More than 10,000 square meters: According to delivery terms.
Remark: Expected circumstances may lead to delivery delay, customer will be informed in time.

What’s your payment methods?
T/T, L/C, Paypal or Western Union.

What’s your shipping port?
Shanghai, Shenzhen or according to customer’s request.
